Fraste Mito 4 CS
This two-piece drill rig features a separate power pack from the drill head and controls. Its compact dimensions make it ideal for foundation drilling in tight spaces.
- Applications: Micro Drilling
- Pullback: 11,240 lbs.
- Pulldown: 11,240 lbs.
Previous
Next
Previous
Next

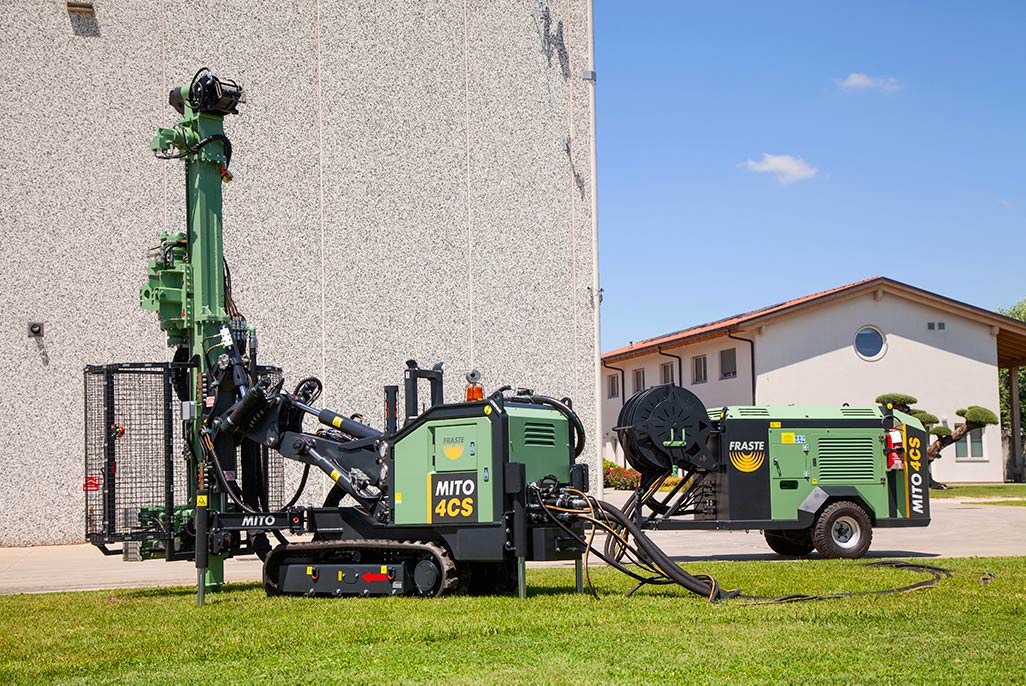

FRASTE MITO 4 CS with remote power pack, suitable for all foundation works, civil engineering jobs like micropiles, tie bars, ground consolidations, mineral exploration, diamond core rotary drilling and other purposes. The hydraulic remote power pack and the very small dimensions of the rig allow to work inside buildings and in very limited places.
Your Next Drilling Solution Starts Here with the Fraste Mito 4 CS
Features & Specifications
Power
- CAT 3.6 - Stage V - Tier 4F - 120,6 Hp
- KUBOTA V3800 - Stage IIIA - Tier 3 - 100 Hp
Rotary Head Stroke
- 2,95 - 4,6 - 7,2 ft
Max Rotary Head Torque
- 8700 lbf*ft
Max Rotary Head Speed
- 1220 rpm
Clamp
- 1,6"-9,8"
Weight
- ~ 9500+4600 lbs.
Options & Upgrades
Hydraulic Drifter
Hydraulic Chuck
Request a Quote
Ready to bring the Fraste Mito 4 CS to your fleet? Let’s talk specs, delivery timelines, and custom configuration options that match your next project.
