FRASTE ML MAX

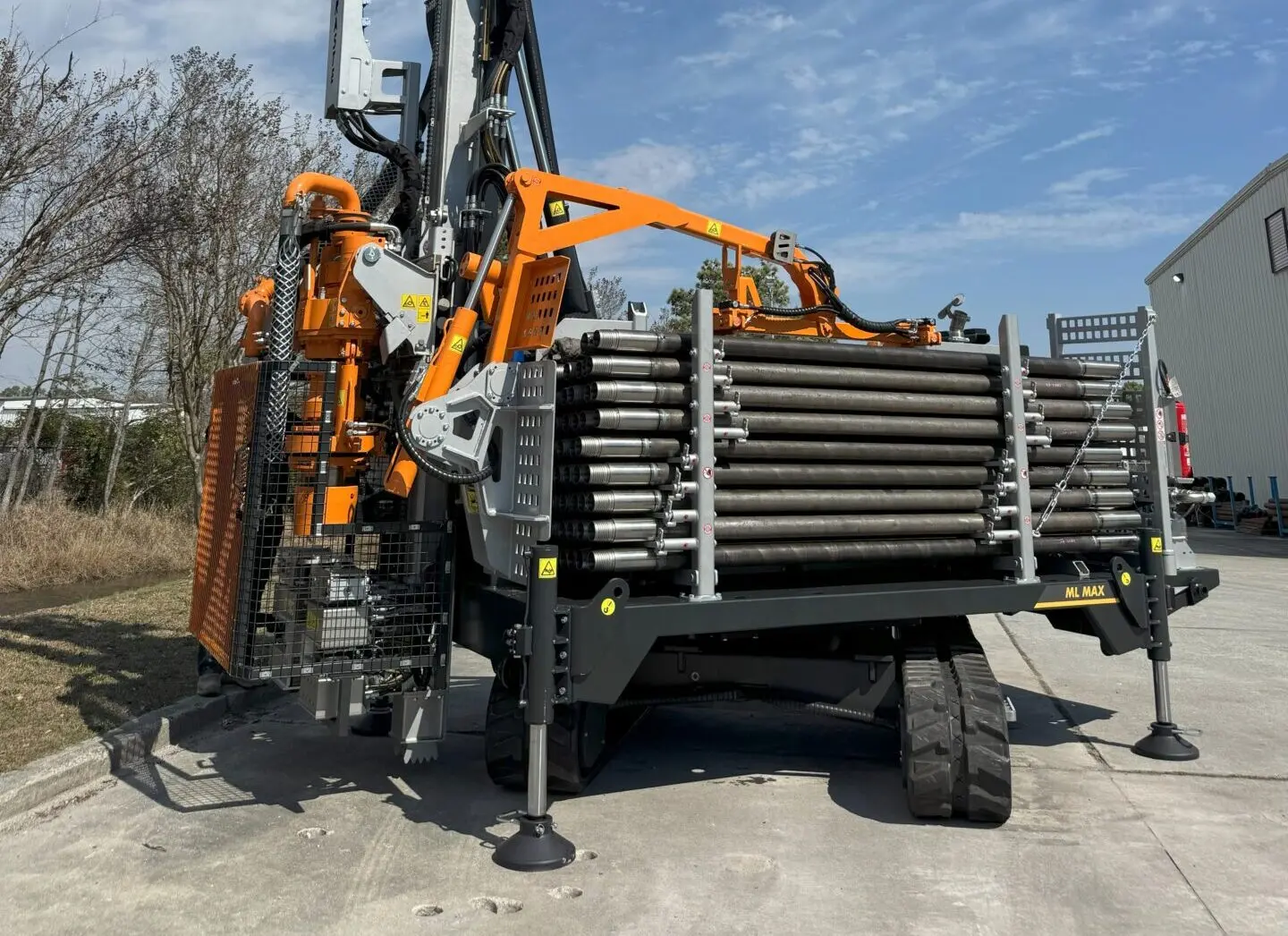

Flexible, multitasking, powerful, and top productivity rate. Properly designed to be fitted with the well-known and tested FRASTE automatic drill pipes loading system “MANIPULATOR”.
- Applications: Geothermal Drilling, Water Well Drilling
- Pullback: 13,488 lbs.
- Pulldown: 10,790 lbs.
Previous
Next
Previous
Next

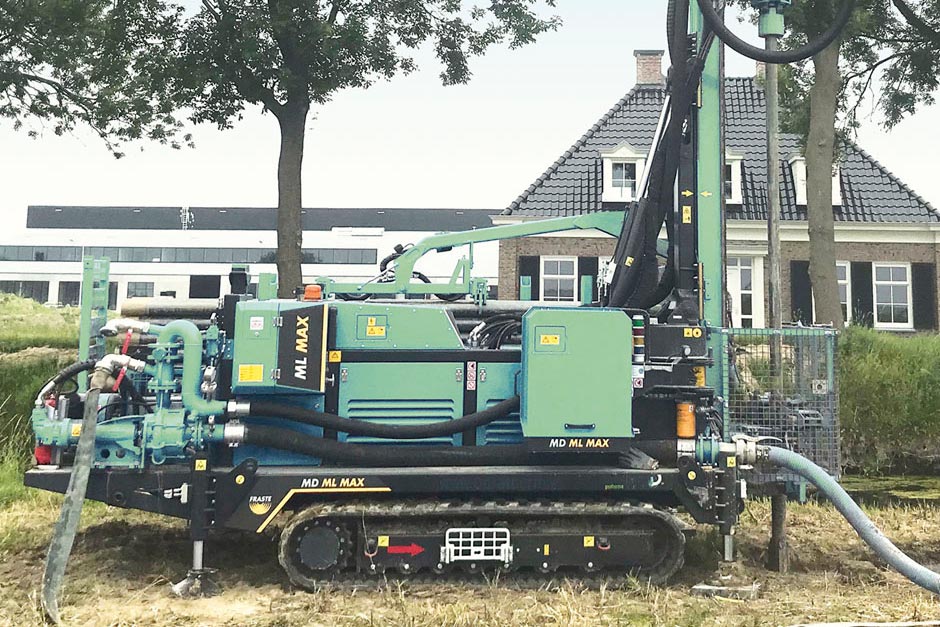

This is a quality and dynamic drilling rig, equipped with Stage 4 Final engine of 140 HP and suitable for Water Wells and Geothermal drilling. MULTIDRILL ML MAX: sturdy, high construction standards, avant-garde hydraulic system and great performances, to confirm the High-Quality production level. Easy maneuverability and maintenance. Safety and perfect functionality are ensured in accordance with European Machinery Directive and all the rules in the field of safety at work and environmental protection.
Your Next Drilling Solution Starts Here with the FRASTE ML MAX
Features & Specifications
Power
- CAT C4.4 - Stage V - Tier 4F - 148 Hp
- CAT C4.4 - Stage IIIA - Tier 3 - 142 Hp
Rotary Head Stroke
- 14, 8'- 18'
Max Rotary Head Torque
- 8,703 ft lbf
Max Rotary Head Speed
- 220 rpm
Clamp
- 2, 4"-11"
Weight
- ~ 19,069-19,841 lbs.
Options & Upgrades
Main Winch
Wire Line Winch
Triplex Pump
Screw Pump
Foam Pump
Request a Quote
Ready to bring the FRASTE ML MAX to your fleet? Let’s talk specs, delivery timelines, and custom configuration options that match your next project.
