GeoTherm Logic 5.5 (GTL5.5)
Dual grout Mixing Plant
- Applications: Geothermal Drilling, Grouting & Loop Loading
Previous
Next
Previous
Next

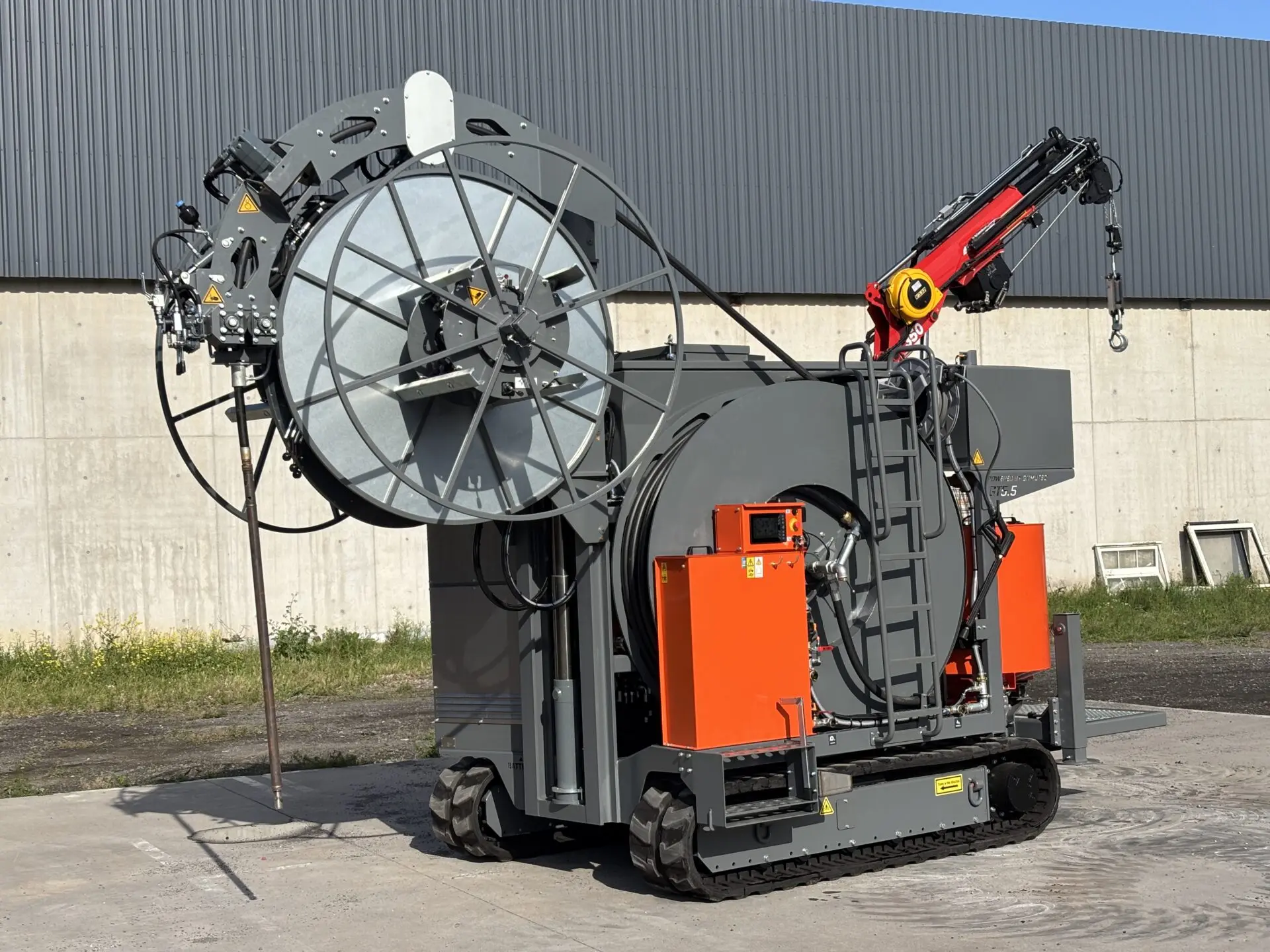

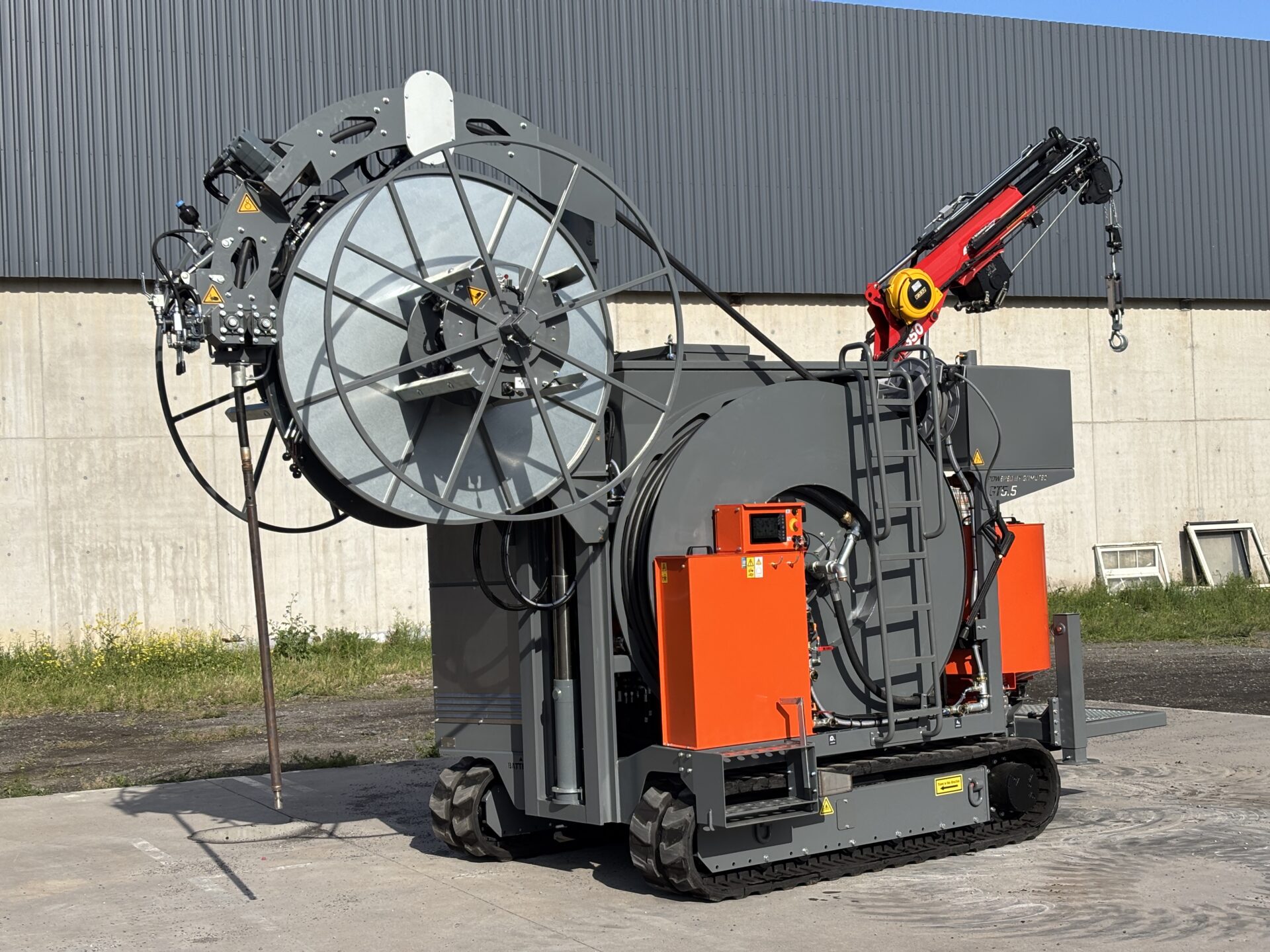

The GTL5.5 puts your entire grouting operation on one chassis. Twin mixers, an integrated super sack hopper, automated mix-and-pump controls, and a powered geo loop loader work together seamlessly, eliminating the equipment shuffle and keeping crews productive from setup to shutdown.
Your Next Drilling Solution Starts Here with the GeoTherm Logic 5.5 (GTL5.5)
Features & Specifications
Power Unit:
- Kubota V2403-CR-TE5B 48,6kW@2700rpm, Stage V, Diesel
Hopper Capacity:
- 475 Gal Capacity
Mixer Holding Capacity:
- 92 gal X 2
Injection Pump Capacity:
- 22 gpm
- 360 psi
Grouting Hosereel Capacity
- 980 ft.
Options & Upgrades
Loader Crane:
- Range: 21 ft
- Capacity: 25,500 ft/lb
Power Generator
- 50 Hz
Power Washer:
- 2,176 PSI
- 5 GPM
- 50 ft
Request a Quote
Ready to bring the GeoTherm Logic 5.5 (GTL5.5) to your fleet? Let’s talk specs, delivery timelines, and custom configuration options that match your next project.
