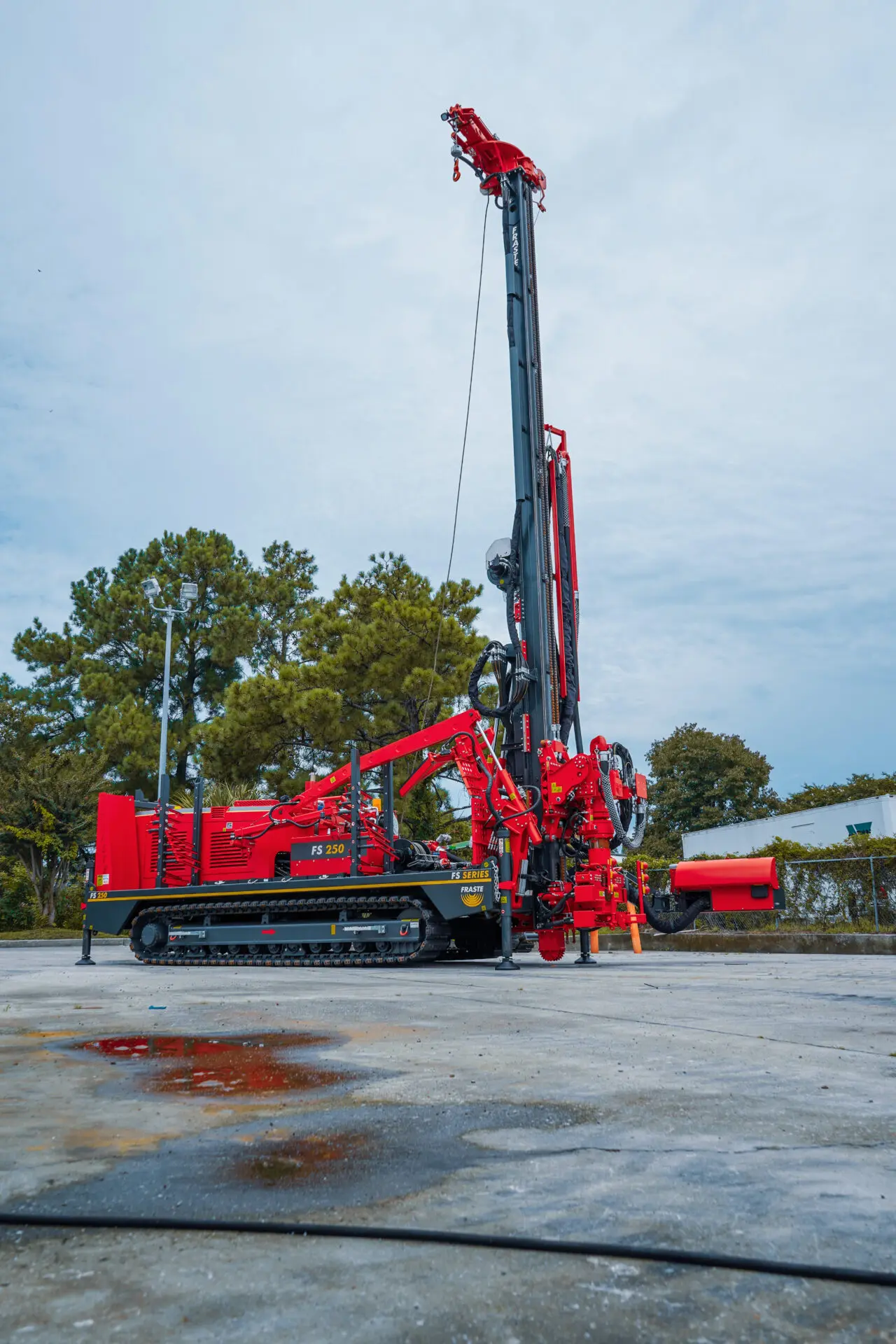

FRASTE FS 250
Maximize drilling performance with the FS 250 — built for unmatched efficiency, power, and safety.
- Applications: Geothermal Drilling, Water Well Drilling
- Pullback: 31,473 lbf.
- Pulldown: 17,984 lbf.
Previous
Next
Previous
Next
Power your drilling success with the FRASTE MULTIDRILL FS 250.
Driven by a Stage 4 Final 275 HP engine, the FS 250 delivers unmatched torque, efficiency, and reliability. Its advanced rod handling system accelerates trip speeds and boosts productivity—perfect for Water Well and Geothermal drilling.
Backed by decades of global experience, the FS 250’s rugged build, innovative hydraulics, and built-in safety systems keep operators protected while maximizing output in the toughest conditions.
Your Next Drilling Solution Starts Here with the FRASTE FS 250
Features & Specifications
Power
- CAT C7.1 ACERT - 6-cylinder - Stage IV - Tier 4F - 275 Hp @ 2200 RPM
- CAT C7.1 ACERT - 6-cylinder - Stage IV - Tier 4F - 275 Hp @ 2200 RPM
Rotary Head Stroke
- 25 ft. 3in.
Max Rotary Head Torque
- 1st Gear: 3,900 ft. lbs. @ 200 rpm.
- 2nd Gear: 585 ft. lbs. @ 130 rpm.
Max Rotary Head Speed
- 130 rpm. - 200 rpm.
Clamp
- 2 3/8 in. - 11 in.
Overall width
- 8 ft.
Rod Storage
- 40 rods of 3.5 in. x 20 ft
Options & Upgrades
Foam Pump
Request a Quote
Ready to bring the FRASTE FS 250 to your fleet? Let’s talk specs, delivery timelines, and custom configuration options that match your next project.
"*" indicates required fields
