Geothermal drilling is about more than the drill rig. Productive geothermal projects depend on the entire operation working together, from drilling and casing installation to fluid management, loop installation, grouting, equipment maintenance, and service.
Bore Logic provides a comprehensive lineup of equipment and support solutions designed around the complete geothermal drill site. Through experienced equipment partners including FRASTE, Gomutec, and Agiva International, Bore Logic helps contractors build more productive operations with advanced track mounted drilling equipment, specialized geothermal support equipment, and experienced field service.
Whether a contractor needs a compact drill rig for restricted-access projects, a high-production geothermal rig, automated rod and casing handling, an integrated looping and grouting system, drilling fluid management, or service for existing equipment, Bore Logic is focused on helping contractors optimize production across the entire jobsite.
FRASTE ML MAX: Compact Track Mounted Drilling Equipment
The FRASTE ML MAX gives geothermal contractors a combination of compact dimensions, mobility, and drilling capability in a versatile track-mounted platform. For geothermal well drilling, access can determine which projects a contractor can take on. Residential properties, established commercial sites, and other restricted-access locations may not provide the space required for larger drilling equipment.
The ML MAX is designed to help address that challenge. Its track-mounted configuration and 360-degree slewing capability give operators greater flexibility when positioning the machine around the drill site. Despite its compact footprint, the ML MAX provides up to 13,488 lbf of pullback and up to 8,703 ft-lb of rotary torque, depending on configuration.
For contractors looking for track mounted drilling equipment that can handle demanding work while maintaining jobsite mobility, the ML MAX provides a highly versatile drilling platform.
FRASTE FS 250: Built for Geothermal Production
When production is the priority, the FRASTE FS 250 provides the power and capacity required for demanding geothermal well drilling programs. Powered by a 275 HP CAT C7.1 engine, the FS 250 delivers approximately 31,500 lbf of pullback and features a 25-foot mast stroke. That combination makes the FS 250 well suited for contractors focused on increasing drilling production across larger geothermal projects.
A productive geothermal operation needs equipment that can maintain an efficient drilling cycle throughout the day. The FS 250 provides the power, mast capacity, and track-mounted mobility needed to help contractors move efficiently from borehole to borehole.
FRASTE GT ROBOT 275: Automation Meets Geothermal Drilling
The FRASTE GT ROBOT 275 takes track mounted geothermal drilling equipment in a different direction by combining drilling capability with extensive onboard rod and casing storage and automated handling. Powered by a 275 HP CAT C7.1 engine, the GT ROBOT delivers 40,466 lbf of pull-up force and 17,985 lbf of pull-down force. Its double-rotary drilling system provides up to 8,851 ft-lb of torque at the drill pipe rotary head and up to 28,027 ft-lb at the casing rotary head.
One of the GT ROBOT’s biggest advantages is material handling. The machine can carry approximately 650 feet of drill pipe and 650 feet of casing onboard. Automated rod and casing handling helps reduce repetitive manual handling while keeping critical drilling components immediately available to the operation.
For geothermal contractors looking to reduce interruptions and increase automation, the GT ROBOT represents an innovative approach to high-production geothermal well drilling.
GeoTherm Logic 5.5: Streamlining Looping and Grouting
Drilling the borehole is only one part of a geothermal installation. Once drilling is complete, contractors still need to install the geothermal loop and complete the grouting process. The GeoTherm Logic 5.5, or GTL5.5, was designed to streamline that portion of the operation. Instead of moving multiple pieces of equipment around the drill site, the GTL5.5 puts the primary looping and grouting systems together on one chassis.
Twin mixers, an integrated super sack hopper, automated mix-and-pump controls, a powered geo loop loader, and onboard hose management work together as a single system. By consolidating these processes, contractors can reduce equipment shuffle, simplify setup, improve material handling, and keep crews focused on completing boreholes.
The goal is simple: create a more efficient workflow from drilling through loop installation and grouting.

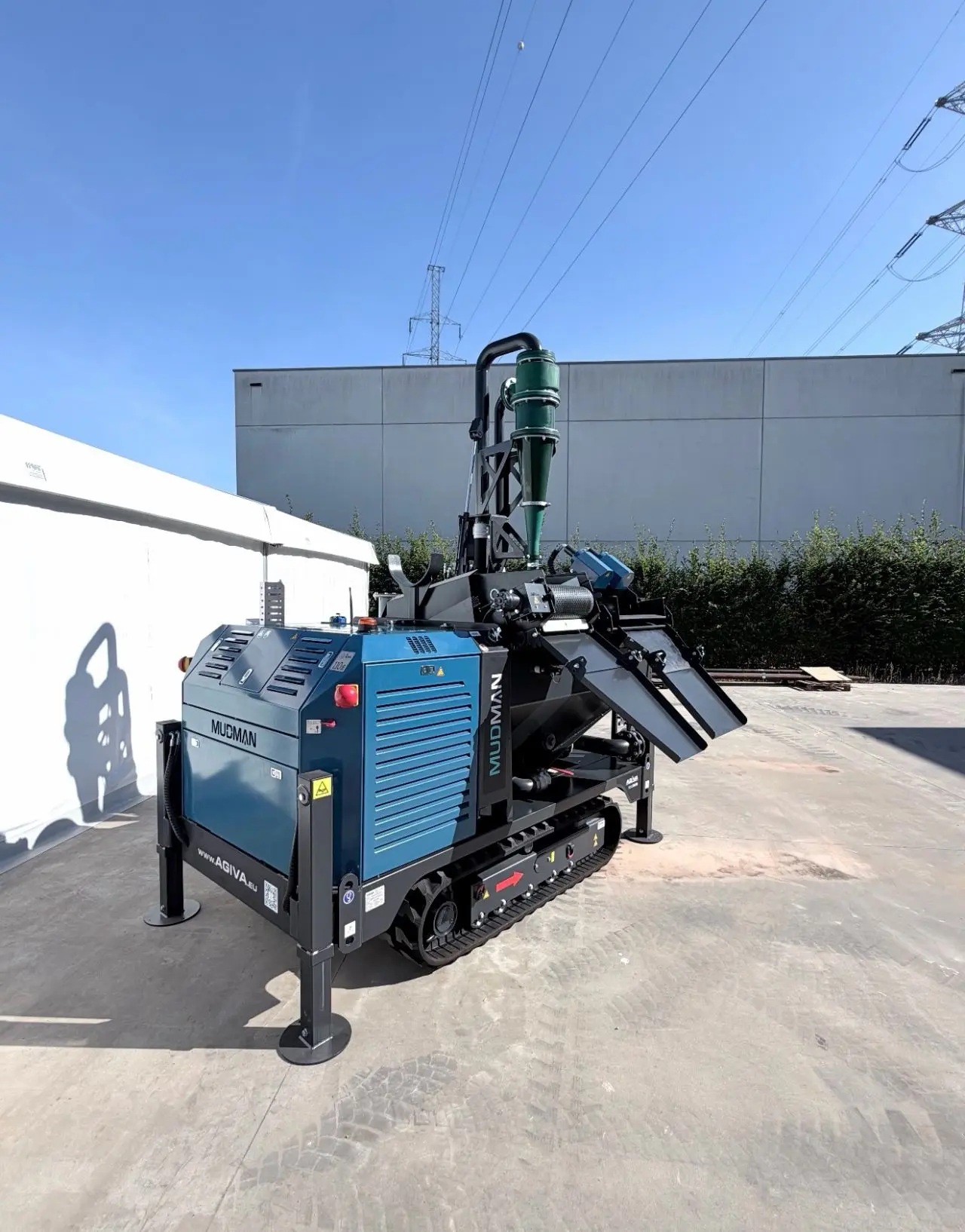

MUDMAN: Improve Drilling Fluid Management
Efficient geothermal well drilling also depends on what happens to the drilling fluid and cuttings coming out of the borehole. The MUDMAN provides a mobile solution for drilling fluid recycling and solids separation. The system is designed to remove materials such as gravel, clay, sand, and drilling solids from the fluid stream so drilling fluids can be managed more effectively on site.
Its integrated cyclone, shaker, and conveyor help contractors maintain a cleaner, more organized drilling operation while potentially reducing water and polymer consumption. For geothermal contractors operating in residential, commercial, or environmentally sensitive locations, effective fluid and solids management can be an important part of overall jobsite efficiency.
Equipment Service, Maintenance and Repair
Even the best drilling equipment only creates revenue when it is operating. That is why Bore Logic’s geothermal offering extends beyond equipment sales. Bore Logic provides drilling equipment service, maintenance, diagnostics, and repair to help contractors maximize uptime and extend the productive life of their equipment.
Our service capabilities are not limited to equipment purchased from Bore Logic. Our technicians service drilling equipment from a wide range of manufacturers and brands. Whether the issue involves routine preventative maintenance, troubleshooting, equipment repairs, or an unexpected breakdown in the field, Bore Logic’s service team is focused on getting equipment back to work.
We also support rig startups, onsite training, diagnostics, and ongoing equipment maintenance. Optimizing geothermal production is not simply about purchasing another machine. It is about keeping the entire fleet operating.
A Complete Approach to Geothermal Well Drilling
The future of geothermal well drilling will require more than powerful drill rigs. Contractors need equipment and support systems that work together across the entire drill site. Bore Logic brings together track mounted drilling equipment, automated drilling technology, looping and grouting systems, drilling fluid management, parts, training, maintenance, and field service to help contractors build more productive geothermal operations.
The FRASTE ML MAX provides compact mobility. The FRASTE FS 250 provides production drilling capability. The FRASTE GT ROBOT 275 introduces automation and onboard material handling. The GTL5.5 streamlines looping and grouting. The MUDMAN improves drilling fluid and solids management. Bore Logic’s equipment service, maintenance, and repair capabilities help keep the entire operation working.
Together, these solutions create a comprehensive approach to geothermal well drilling focused not simply on individual pieces of equipment, but on helping contractors optimize production across the entire jobsite.
Keep Drillers Drilling
At Bore Logic, everything comes back to one objective: Keep Drillers Drilling. From advanced track mounted drilling equipment to specialized geothermal support systems and drilling equipment service, Bore Logic is building a comprehensive equipment and support platform for the geothermal drilling industry.
Whether you are expanding a geothermal drilling fleet, improving an existing operation, or looking for ways to increase production, Bore Logic can help identify equipment and support solutions built around the way your crews actually work.
Learn More About Bore Logic Geothermal Drilling Solutions
Explore Bore Logic’s comprehensive lineup of geothermal well drilling equipment, track mounted drilling equipment, looping and grouting solutions, drilling fluid management systems, and equipment service capabilities.
Contact Bore Logic to discuss your drilling operation and learn how our equipment and service solutions can help optimize production and Keep Drillers Drilling.
